Products Catalog

RFID Reader Modules

Stronglink supplies HF(13.56MHz) RFID OEM Reader Modules, UHF RFID Modules.
Excepting SL013, both the other reader modules integrate all necessary components and antenna on one PCB. As a component part, they are easy to be embedded in your device.
Click the link check the details, find out our competitive prices and downloads for samples source code for various microcontrollers.

RTS4000 Bluetooth Module

RTS4000 Bluetooth Module

Frequency
2.4~2.483GHz
Protocol Stack
LL, SM, L2CAP, ATT, GAP, GATT
Tag supported
-
Antenna port
PCB
Transmission power
Up to +8dBm
Operation Distance
Up to 10m
Interface
SPI
Supply Voltage
1.7 - 3.6 VDC
Dimension
25 × 21.5 mm
RTS4001 Bluetooth Module

RTS4001 Bluetooth Module

Frequency
2.4~2.483GHz
Protocol Stack
LL, SM, L2CAP, ATT, GAP, GATT
Tag supported
-
Antenna port
Ceramic
Transmission power
Up to +8dBm
Operation Distance
Up to 10m
Interface
SPI
Supply Voltage
1.7 - 3.6 VDC
Dimension
11.5 × 10 mm
NFC Reader/Writer Module - SL060

SL060 NFC Reader/Writer

Frequency
13.56MHz
Protocol
ISO14443A
Tag supported
MIFARE Ultralight®,
NTAG203,
MIFARE Mini,
MIFARE Classic® 1K,
MIFARE Classic® 4K,
FM11RF08, DESFire®,
DESFire® Ev1
Auto Detecting
Integrated Antenna
yes
Reader/Writer
yes
Interface
UART
Supply Voltage
2.5 - 3.6 VDC
Dimension
46 × 46 mm

RT400
UHF RFID Module

Frequency
840~960MHz
Protocol
ISO18000-6C & EPC Gen2
Tag supported
ISO18000-6C UHF tags
Antenna port
IPX
Interface
USB Virtual COM
Sleep mode
yes
RF output
10~30dBm
Supply Voltage
5V(USB power supply)
Dimension
80 × 65 mm

SL025B MIFARE Reader/Writer

Frequency
13.56MHz
Protocol
ISO14443A
Tag supported
MIFARE Ultralight®,
NTAG203,
MIFARE Mini,
MIFARE Classic® 1K,
MIFARE Classic® 4K,
FM11RF08
Auto Detecting
yes
Integrated Antenna
yes
Reader/Writer
yes
Interface
RS232
Supply Voltage
4.4 - 12.0 VDC
Dimension
86 × 55 mm

SL025M MIFARE Reader/Writer

Frequency
13.56MHz
Protocol
ISO14443A
Tag supported
MIFARE Ultralight®,
NTAG203,
MIFARE Mini,
MIFARE Classic® 1K,
MIFARE Classic® 4K,
FM11RF08
Auto Detecting
yes
Integrated Antenna
yes
Reader/Writer
yes
Interface
UART
Supply Voltage
4.4 - 12.0 VDC
Dimension
80 × 55 mm
IIC Mifare Module - SL030

SL030 MIFARE Reader/Writer

Frequency
13.56MHz
Protocol
ISO14443A
Tag supported
MIFARE Ultralight®,
NTAG203,
MIFARE Mini,
MIFARE Classic® 1K,
MIFARE Classic® 4K,
FM11RF08
Auto Detecting
yes
Integrated Antenna
yes
Reader/Writer
yes
Interface
I2C
Supply Voltage
2.5 - 3.6 VDC
Dimension
38 × 38 mm
Small RFID Reader/Writer - SL031

SL031 MIFARE Reader/Writer

Frequency
13.56MHz
Protocol
ISO14443A
Tag supported
MIFARE Ultralight®,
NTAG203,
MIFARE Mini,
MIFARE Classic® 1K,
MIFARE Classic® 4K,
FM11RF08
Auto Detecting
yes
Integrated Antenna
yes
Reader/Writer
yes
Interface
UART
Supply Voltage
2.5 - 3.6 VDC
Dimension
38 × 38 mm
Mifare OEM Writer - SL032

SL032 MIFARE Reader/Writer

Frequency
13.56MHz
Protocol
ISO14443A
Tag supported
MIFARE Ultralight®,
NTAG203,
MIFARE Mini,
MIFARE Classic® 1K,
MIFARE Classic® 4K,
FM11RF08, DESFire®,
DESFire® Ev1
Auto Detecting
Integrated Antenna
yes
Reader/Writer
yes
Interface
UART
Supply Voltage
2.5 - 3.6 VDC
Dimension
46 × 46 mm
Mifare USB Reader - SL040

SL040
MIFARE Reader

Frequency
13.56MHz
Protocol
ISO14443A
Tag supported
MIFARE Ultralight®,
NTAG203,
MIFARE Mini,
MIFARE
Class® 1K
,
MIFARE
Class® 4K
,
FM11RF08,
MIFARE Plus®, MIFARE ProX,
DESFire®,
DESFire® Ev1
Auto Detecting
yes
Integrated Antenna
yes
Reader/Writer
read only
Interface
USB
Supply Voltage
4.5 - 5.5 VDC
Dimension
65 × 46 mm
Mifare OEM Module - SL013

SL013 MIFARE Reader/Writer

Frequency
13.56MHz
Protocol
ISO14443A
Tag supported
MIFARE Classic® 1K,
MIFARE Mini,
FM11RF08
Auto Detecting
Integrated Antenna
Reader/Writer
yes
Interface
UART
Supply Voltage
4.5 - 5.5 VDC
Dimension
42 × 18 mm
Cheapest Mifare Module – SL018

SL018 MIFARE Reader/Writer

Frequency
13.56MHz
Protocol
ISO14443A
Tag supported
MIFARE Ultralight®,
NTAG203,
MIFARE Mini,
MIFARE Classic® 1K,
MIFARE Classic® 4K,
FM11RF08
Auto Detecting
yes
Integrated Antenna
yes
Reader/Writer
yes
Interface
I2C
Supply Voltage
4.5 - 7.0 VDC
Dimension
65 × 45 mm

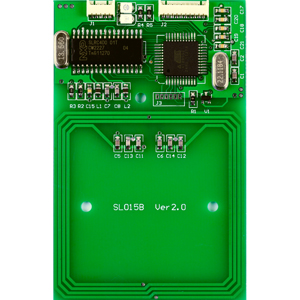

ISO15693 Reader - SL015B3

SL015B-3 ISO15693 Reader/Writer

Frequency
13.56MHz
Protocol
ISO15693
Tag supported
I.CODE SLI,
Tag_it HF-I
Auto Detecting
yes
Integrated Antenna
yes
Reader/Writer
yes
Interface
RS232
Supply Voltage
4.5 - 5.5 VDC
Dimension
86 × 55 mm
ISO15693 Reader - SL015M3

SL015M-3 ISO15693 Reader/Writer

Frequency
13.56MHz
Protocol
ISO15693
Tag supported
I.CODE SLI,
Tag_it HF-I
Auto Detecting
yes
Integrated Antenna
yes
Reader/Writer
yes
Interface
UART
Supply Voltage
4.5 - 5.5 VDC
Dimension
80 × 55 mm
