SL131 is the lastes integrated reader which developed by our company.it can read the tag or card which according to the protocol of ISO 18000-6B, EPC CLASS 1 G2. It can be used in vehicle management, ETC, Personnel access control, electronic anti-counterfeiting, logstic monitor, production auto managemtn system and so on.
| Frequency | Europe：865MHz-868MHz America：902MHz-928MHz |
| Frequency Modulation | FHSS or Fixed-Frequency, Can be set by software |
| Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| RF output | 0dBm adjustable；50Ω load |

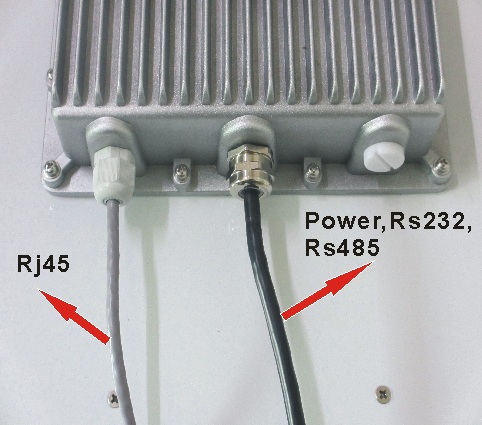

| Communication interface | RJ45、RS232、RS485 |
| Communication Rate | Serial rate 9600～115200bps,RJ45 is 10Mbps |
| Antennas | 9dbi |
| input / output (GPIO) | 1 inputs, 1 output |
| Read Mode | Continue、Trigger、Command |
| Reading Distance | Typical read range: 3 to 6M (depends on the tag) |
| Application software | Supply API SDK and VC and VB, .NET |
| Dimension | 280 × 280 × 90mm |
| Surface material | ABS and Metal |
| Humidity | 5% to 95%, Non-condensing |
| Operating Temp | -20ºC to + 70ºC |
| Storage Temp | -40ºC to + 80ºC |
| Power | With 220V AC input, the output of +12 V/5A DC power converter |
| Quantity | Unit Price (USD) |
| 1 - 10 | $449 |
| 10-100 | $429 |
| 100-500 | $409 |
