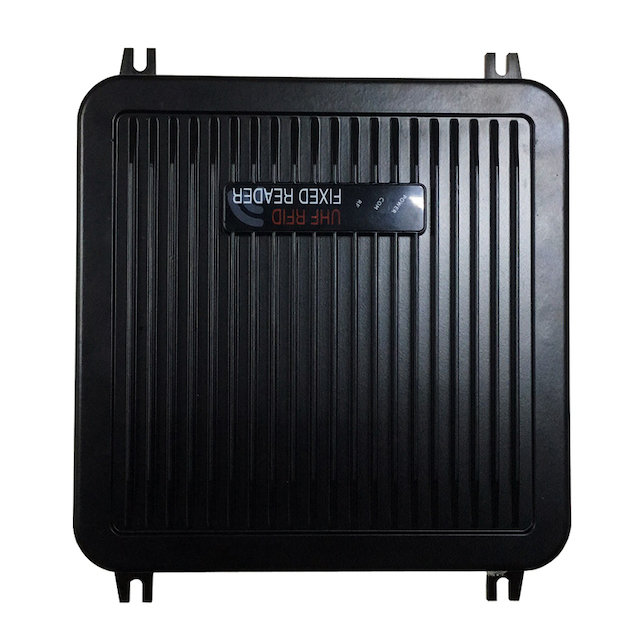

SL144 UHF RFID Reader

SL144 is specially designed for wide detective range and multi-tags identification. One reader could connect with four antennas and the antennas could be placed according to the practical needs. Meanwhile, it could connect with four antennas of different power, to assure that the tags would not be missed detection in the specific range.
This reader has RS232/485, wiegand 26/34 and RJ45 interfaces, so it could meet different communication requirements, and could be used in the application of production control, warehouse logistic and tags identification in the wide detective range.

Frequency 860~928MHz (Can be adjusted for different country or different area)
Protocol ISO18000-6B/C, EPC CLASS1 Gen2
Output power +12.5 ~ +30dBm
Frequency Hopping 50
Communications Speed Serial port speed 9600~115200bps, RJ45 speed 10Mbps

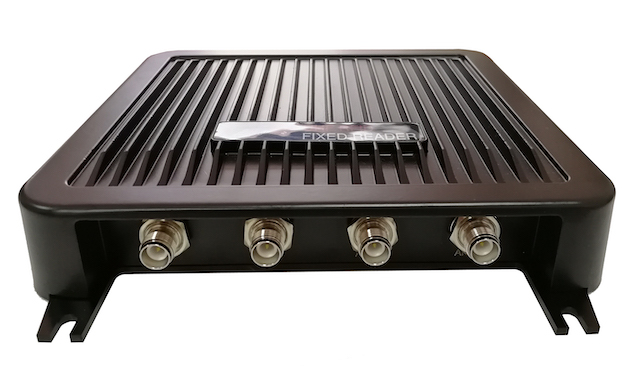

Antenna interface 4 SMA Ports
Integrated Antenna No
Operation Distance reading range>8m; writing range >3m (Actual reading / writing range is also influenced by tag, antenna, cable, surroundings)
Power Consumption The average power < 20W
Interface RS232
Supply voltage 110 ~ 220V AC, +12V DC
Dimension 180 × 162 × 45 mm
Operating Temperature -10 ~ +55°C
Work Model Command, Continue, Trigger

Unit Price (USD)
$645.20
