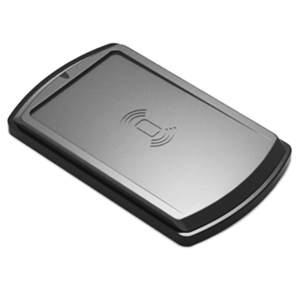

NFC Reader SL600

Being developed based on NXP’s NFC transponder IC, SL600 is a mini NFC reader/writer. This RFID Reader supports MIFARE Classic® 1K, MIFARE Classic® 4K, MIFARE Ultralight®, MIFARE DESFire® and NFC NFCIP-1 mode. The maximum working current is less than 50mA. It integrates all necessary components and antenna in the PCB.
SL600 can offer NFCIP-1 functions. Users can send NFC message to NFC device to open a web URL or display text words in the window.

    NFC Reader - SL600
Frequency 13.56MHz
Protocol ISO14443A, ISO18092 NFCIP-1
Tag supported MIFARE Ultralight®, NTAG203, MIFARE Mini, MIFARE Classic® 1K, MIFARE Classic® 4K, FM11RF08, DESFire®
Interface USB HID protocol
Operating temperature -25°C ~ +70°C
Support System Windows 32bit / 64bit
Dimension 110 × 81 × 26 mm
Supply voltage 2.5 ~3.6 VDC

Quantity Unit Price (USD)
1 - 9 $31.15
10 - 99 $28.04
100 - 499 $25.24
500 - 999 $22.71
> 1,000 $20.44
