SLK02-125KHz LF proximity RFID Keychain tag is developed based on SMARTCHIP SMC4100 IC, which is connected to a coil and then embedded into ABS fob enclosure and with a metal keyring. It is the same with SLK02-13.56MHz HF MIFARE keychain, while the latter is developed based on NXP MF1 IC S50.
| SLK02-125K | ||
| Frequency | 125KHz | |
| Chipset Inbuilt | TK4100(SMC4100) | |
| Protocol | ISO10536 | |
| Unique ID | 40(bit) | |
| Supported Readers | SL102 | |
 Quotation - 125KHz
|
||
| SLK02-13.56M | ||
| Frequency | 13.56MHz | |
| Chipset Inbuilt | MIFARE 1K(NXP, MF1 S50) | |
| Protocol | ISO14443A | |
| Unique ID | 32(bit) | |
| EEPROM Size | 1024(Byte) | |
| Data Retention | 10(year) | |
| Write Endurance | 100,000(cycles) | |
| Supported Readers | SL500L, SL500A, SL500F, SL013, SL018, SL025B, SL025M, SL030, SL031, SL032, SL040, SL040A, SL060, SL600 |
|
|
Quotation - 13.56MHz
|
||
| Material | ABS | |
| Temperature | -10°C ~ +50°C | |

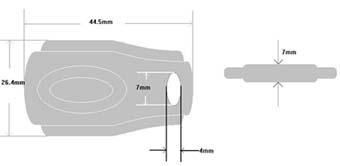

| Dimension |  |
|
| Quantity | Unit Price (USD) | |
| 125KHz | 13.56MHz | |
| 1 - 99 | $0.73 | $1.15 |
| 100 - 999 | $0.67 | $1.10 |
| 1,000 - 4,999 | $0.65 | $1.05 |
| 5,000 - 9,999 | $0.63 | $1.00 |
| > 10,000 | $0.61 | $0.97 |
| Add to Cart |  |
|
