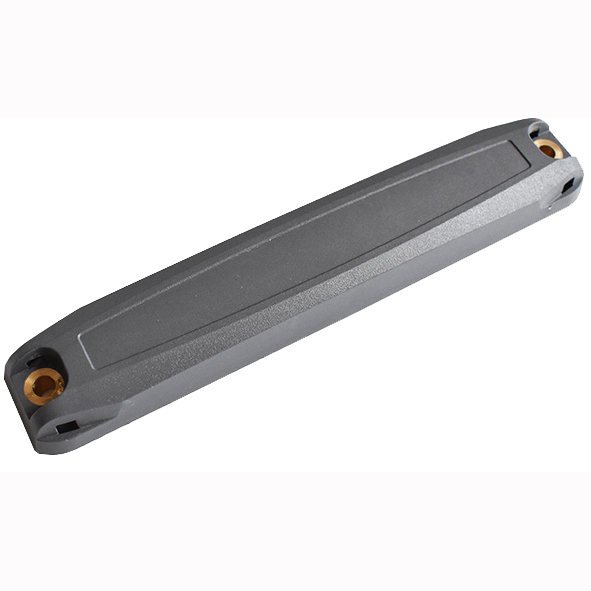

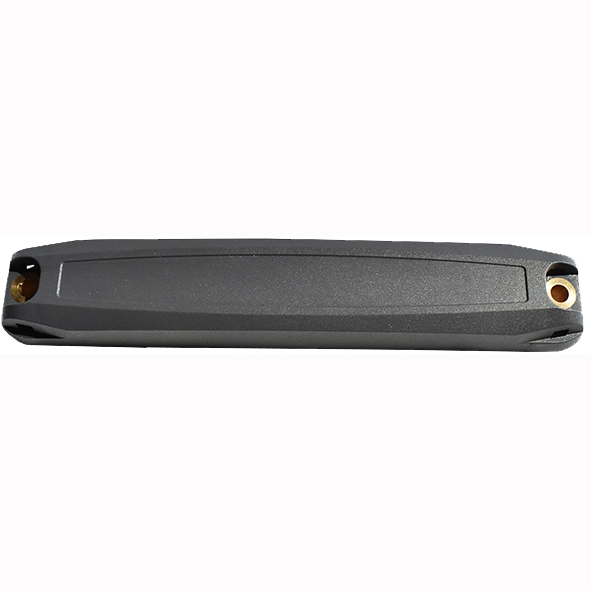

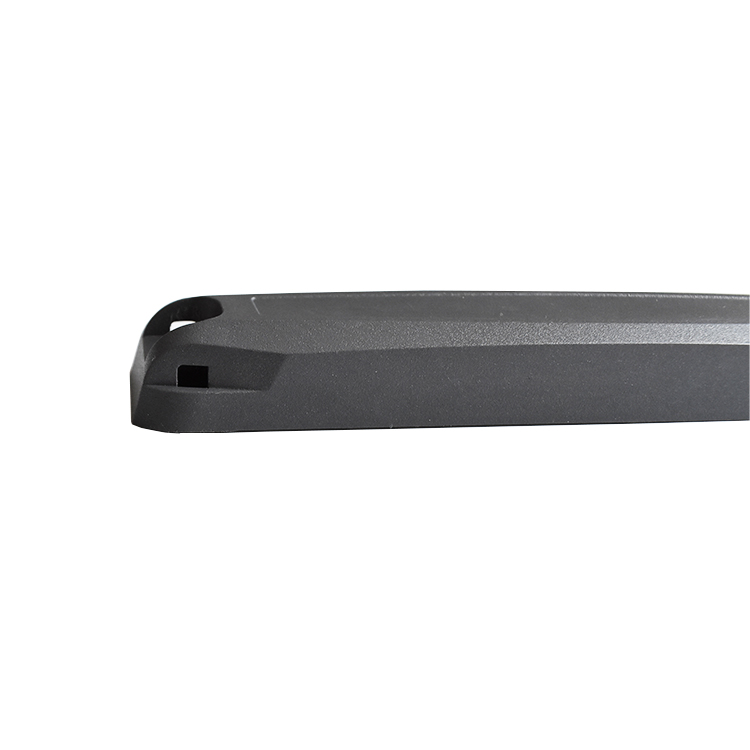

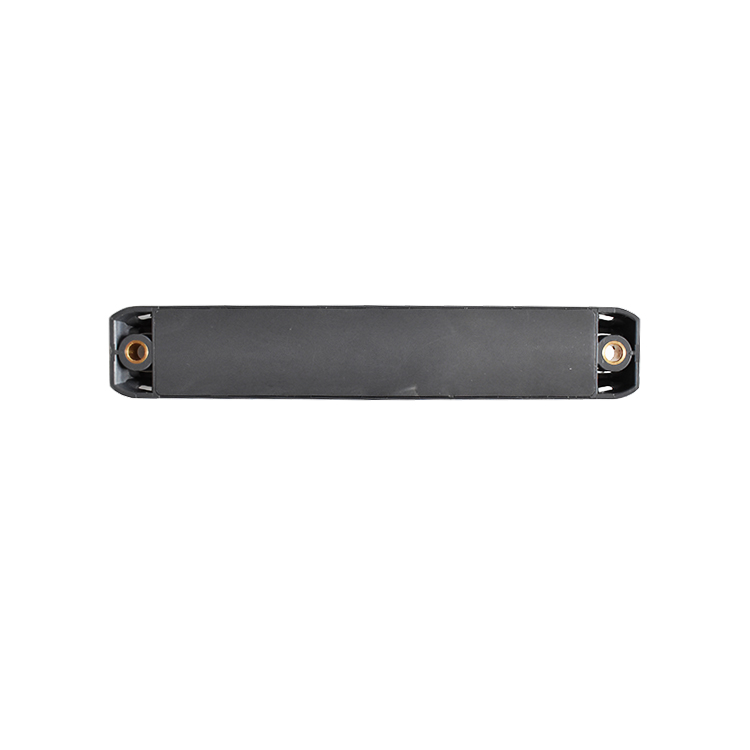

To fulfill all customer requirements is offered with wide range of personalization options including electrical encoding and visual markings.
■ It can be divided into two frequency bands (European frequency and American frequency) and uses high-performance Impinj-Monza-4QT chip to achieve the best reading effect;
■ Linear polarization design with ultra-high reading rate and high tag identification sensitivity in specific directions;
| Frequency | 865-868(EU)
902-928(US) |
| Protocol | EPCGlobal Class1 Gen2 (ISO 18000-6C) |
| Size | 155 * 27 * 14.5mm |
| Memory | 128bit EPC+512bit |
| Material | ABS |
| IP Class | IP55 |
| Applicable Environment | The best effect is to install it on the metal surface |
| Reading Distance | Metal surface 18m(EU); 18m(US)
Non-metallic surface 12m(EU); 12m(US) |
| Operating temperature | -35°C to 85°C |
| Ambient temperature | -35°C to 85°C |
| Installation Method | Mechanical Fixation,Adhesive,Cable tie |
| Weight | 33g |
| Quantity | Unit Price (USD) |
| 1 - 999 | $1.84 |
| 1,000-5,000 | $1.76 |
| > 5,000 | $1.70 |
